Rancho Set of Front Strut Assembly & Rear Shocks fits 07-16 Silverado/Sierra

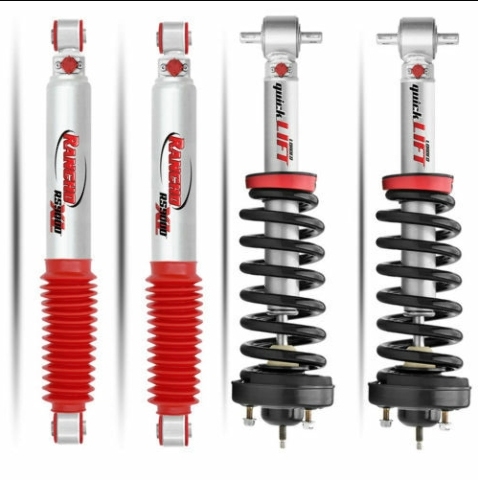

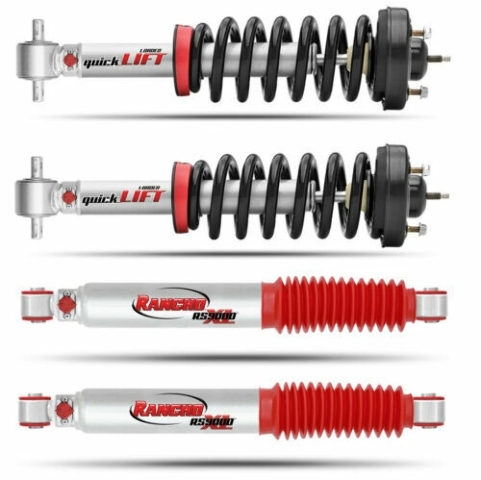

This package includes (2) RS999901 and (2) RS999198

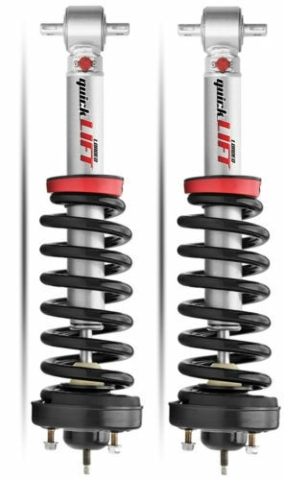

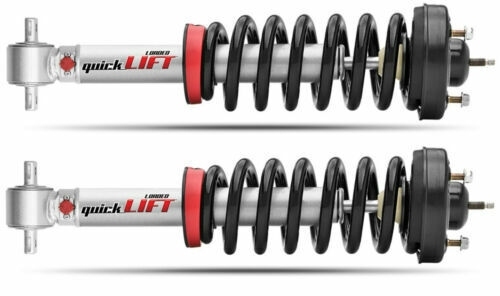

RS999901 (set of two) -RANCHO LOADED QUICKLIFT COMPLETE STRUT ASSEMBLY

Award-winning Rancho® quickLIFT™ Loaded assemblies level and lift late-model trucks and SUVs, providing an aggressive stance and allowing for the use of larger wheel and tire packages without the cost of a complete suspension system or the long installation time. Each Rancho quickLIFT Loaded unit is a gas charged complete modular assembly that includes an application-specific, installed coil spring and upper mounting plate to simplify installation. Engineered with the globally renowned and exclusive RS9000™XL nineposition adjustability, Rancho quickLIFT Loaded units improve performance and provide the ability to manually tune the vehicle’s ride to suit terrain and driver preference. Covered by a Limited Lifetime Warranty.

Features:

• Easy to Install ==> Pre-assembled with coil spring and upper mount
• Levels front suspension ==> Removes the factory rake
• Clears up to 35-in. tires** ==> Creates a custom look, increases ground clearance
• 9-position tuning technology ==> Easily adjust ride quality and performance
• Liquid metallic finish ==> Premium long lasting finish
• Limited Lifetime Warranty ==> Guarantees your investment

Specifications:

• Compressed Length - 13.81
• Extended Length - 8.06
• Travel Length - 4.25
• Body Type - SS7
• Parts Pack - P01577

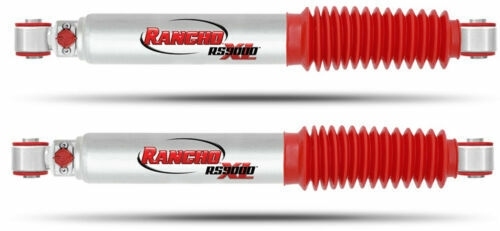

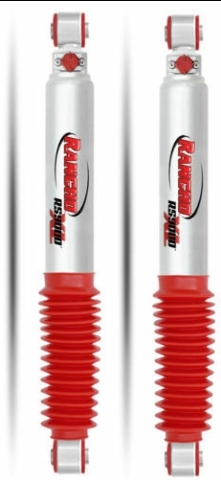

RS999198 (set of two) - RANCHO RS9000XL SHOCK ABSORBER

Nice Levels of Performance! The Rancho® RS9000™XL 9-position adjustable series delivers nine levels of performance to on- and off-road trucks, SUVs and Jeeps. Globally recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced RS9000XL series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unsprung mass inherent in larger tire and wheel combinations. Engineered and manufactured in the U.S., all RS9000XL series units are covered by a Limited Lifetime Warranty.

Features:

• Large, 2.75-in. (70mm) tri-tube body* ==> Increased fluid capacity to operate cooler
• Large, heavy-duty 18mm Nitro-Carb rod* ==> Increases scuffing resistance & corrosion protection
• 9-position tuning technology ==> Allows for optimal performance in any environment
• 9-Position adjustment knob ==> Provides a clear understanding of tuning level
• Gas pressurization of shock ==> Minimizes air-to-oil mixture
• Graphite-filled, Fluon banded piston ==> Provides smoother piston travel & greater responsiveness
• 1-1/4-in. Diameter Sintered Iron piston ==> Brings increased structural conformity
• Rebound Bumper ==> Helps control the rebound motion during harsh driving conditions
• Low-Friction, self-lubricating seal ==> Provides an extra layer of defense against dirt & debris
• Liquid metallic finish ==> Premium long lasting finish
• Protective boot ==> Added protection for the shock rod and oil seal
• Double-welded loops ==> Added strength and durability
• Limited Lifetime Warranty ==> Consumer protection

Specifications:

• Compressed Length - 15.91
  Extended Length - 25.08
• Travel Length - 9.17
• Lower Mounting Code - LS47
• Upper Mounting Code - LS47

Fitment Information:

Year	Make & Model	Fitment Notes	Raised Height
2007-2016	Chevrolet Silverado 1500 4WD	(1/2 Ton) All; w/o Electronic Suspension; w/o 4 Wheel Steering; w/o ZW7 Self-Leveling Nivomat Suspension	2" Lift (Front) 0" Lift (Rear)
2007-2016	Chevrolet Silverado 1500 2WD	(1/2 Ton) All; w/o Electronic Suspension; w/o 4 Wheel Steering; w/o ZW7 Self-Leveling Nivomat Suspension	2" Lift (Front) 0" Lift (Rear)
2007-2016	GMC Sierra 1500 4WD	(1/2 Ton) All; Exc. AWD; w/o Electronic Suspension; w/o 4 Wheel Steering; w/o ZW7 Self- Leveling Nivomat Suspension	2" Lift (Front) 0" Lift (Rear)
2007-2016	GMC Sierra 1500 2WD	(1/2 Ton) All; Exc. AWD; w/o Electronic Suspension; w/o 4 Wheel Steering; w/o ZW7 Self- Leveling Nivomat Suspension	2" Lift (Front) 0" Lift (Rear)
