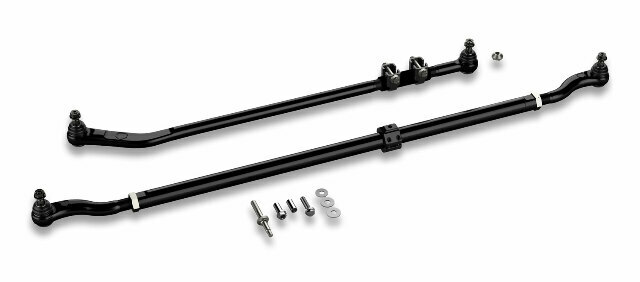

Fits Jeep JK/JKU HD Drag Link Kit Tie Rod Kit 2007-2018 Wrangler TeraFlex 1853900

The TeraFlex JK/JKU Heavy-Duty Drag Link Kit and Heavy-Duty Tie Rod Kit is designed for extreme conditions that typically cause factory steering components to bend and fail on JK Wrangler and JKU Wrangler Unlimited models with 0-6 inch lifts.

Details:

• JK/JKU HD Drag Link Kit and Tie Rod Kit
• Made for extreme conditions that cause factory steering components to bend and fail
• For JK and JKU Wranglers with 0-6 inch lifts
• Sold As A Kit
• SKU: 1853900

Fits:

• 2007-2018 Jeep JK Wrangler (2-door)
• 2007-2018 Jeep JKU Wrangler Unlimited (4-door)

Specs:

• Lift Height: 0-6 Inches (P/N 1853905 recommended for 4-6 inch lift)

Includes:

• HD Drag Link Kit (P/N 1853920)
• HD Tie Rod (P/N 1853910)
• Steering Stabilizer Relocation Mounting Bracket Kit - HD 1-5/8 inch (42mm) Tie Rod (P/N 1123160)

Features and Benefits - HD Drag Link Kit - (P/N 1853920):

• Bolts directly to new high steer knuckle (not included)
• 50 percent stronger than factory drag link to help eliminate front end shimmy and other alignment issues
• 1.25 inch O.D. fully forged drag link eliminates excess movement during hard steering maneuvers
• Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments
• Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
• Adjustable preload tension to ensures proper long-term durability
• Joint is pressed into rod end housing and secured with snap ring
• Fits OEM 17 inch wheel

Notes:

• Modifications required to flip the JK/JKU Drag Link - this kit does not include those required items
• Install Time: 1.5 Hours

D Forged Drag Link Kit – (# 1853920) • Bolts directly to new High Steer Knuckle (not included) • 50% stiffer than factory drag link to help eliminate front end shimmy and other alignment issues • 1.25" O.D. fully forged drag link eliminates excess movement during hard steering maneuvers • Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments • Tie rod joint incorporates same features found in TeraFlex Ball Joints, including 4140 chromoly ball/stud and 1045 carbon steel housing • Adjustable joint preload tension to ensures proper long-term durability • Joint is pressed into rod end housing and secured w/ snap ring • Provides clearance for factory 17" wheels HD Chromoly Tie Rod Kit (# 1853910) • HD 1-5/8" O.D. 4140 heat treated chromoly steel • More than 200% stronger than factory tie rod • Forged tie rod housing designed specifically for JK Wrangler/Unlimited • Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing • Features adjustable rod end preload tension to ensure long-term durability • The joint is pressed into the rod end housing and secured w/ a snap ring • Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll • Provides clearance for factory 17" wheels • Steering Stabilizer Relocation Mount Bracket Kit – HD Tie Rod (# 1123160) Steering Stabilizer Relocation Mount Bracket Kit – HD Tie Rod (# 1123160) • Fits heavy-duty 1-5/8" tie rod • 6061-T6 aluminum clamp and forged 10.9 grade stud • Moves steering stabilizer up nearly 2.5" to help reduce damage to the stabilizer shaft or body • Repositions stabilizer to reduce tie rod roll" associated w/ stabilizer misalignment

Fitment: 2007-2018 Jeep JK Wrangler (2-door) 2007-2018 Jeep JKU Wrangler Unlimited (4-door)
